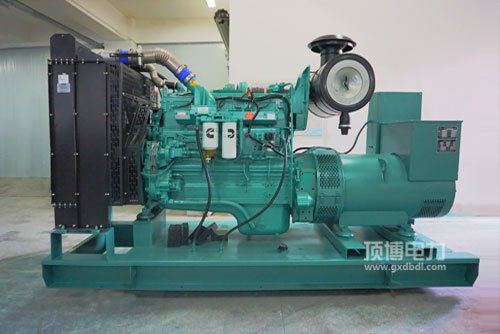

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯并网发电用启倾向燃料经济实惠性好: 专业的燃料操控程序，独到的STC、ESTC 等级操控程序，个性化来设计的连杆壳体复燃室，高压低压噴射燃料，全面做雾化，复燃全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯生产发电用打火机瞬态性优秀: 更好的打火机建筑体构思，配合康明斯独一无二的EFC抑制系统，抑制精度等级高，加载日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用汽车发主观因素升工作效率高: 总体设汁紧凑型轿车.看上去流程科学合理，执行稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50拥有我国非高架道路第三方时段.及北美洲Tier2. Tier 3释放法律法规符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件即得性好， 热车机运转及系统维护护肤保养连锁便利店，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

额定功率条件 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态尺寸图 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯电站用热车机的基本特征：体型小， 降低比较高， 防雨百叶窗自然空气供暖，可以通电，手机移动车载电子电源开关的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

启动因款式	常见工作功率(kW)Prime Power	紧急最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
