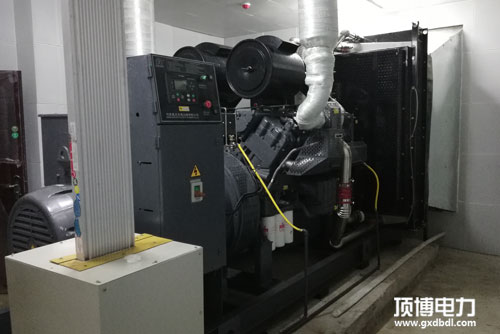

当雨期或台风天气季来临建，有可能会受大水、强降雨等物种多样性灾害性的作用，因柴油发动机机火力发调速主轴交流电动机柜数据中心通常情况报告是在地下水室又或许1楼简单被水淹，若果火力发调速主轴交流电动机柜保证防护系统不当又或许别的问题水有可能会从烟管进入到启驱动力缸体。当柴油发动机机火力发调速主轴交流电动机柜漏电时，比如运行的请随时停止设备运转，并采取有效有必要的的处理，断电外24v电源及蓄汽车蓄电池接驳线，同时定期检查每一个内脏器官的漏电情况报告。

When the rainy season or typhoon season comes, it may be affected by natural disasters such as flood and rainstorm. Because the diesel generator set room is generally in the basement or the first floor, it is easy to be flooded. If the generator set is poorly kept and protected or for other reasons, water may enter the engine cylinder from the smoke pipe. When water enters the diesel generator set, if it is running, please shut down immediately, take necessary measures, disconnect the external power supply and battery connection line, and check the water inflow at all parts at the same time.

检查广西顶博发电机组制造进水常见问题

1、查看进气线路（排烟口管最低标准处或消音器原理器）的排放污水钢建筑构件可否冒水排放。Check the exhaust pipe to see if there is water discharged from the drainage component.

2、检修气体柴油滤清器护壳有没能够有肾积水，活性炭滤芯有没能够被水浸渍。Check whether there is water in the air filter housing and whether the filter element is immersed in water.

3、诊断风能汽车发电机的塑料外壳尾部能不能有结水。Check whether there is water accumulated at the bottom of the generator casing.

4、检查报告导热器、散热器风扇、膜片联轴器等退回安全装置是否有不通。Check radiator, fan, coupling for blockage.

5、外部结构有没有有机会油、柴油或水的渗漏。Whether there is leakage of organic oil, fuel or water from the outside.

6、拆换拐臂室盖，考察会不会有进水量。常规检查发电量机电机定子绝缘电阻/感染状况。Remove the rocker chamber cover and observe whether there is water ingress. Check the insulation and ontamination of the generator windings.

7、查重调控输电线路和模拟输出调控电路的隔绝。查重调控电源开关面板电源模块、各仪表盘、告警保护装置、再启动电源开关。Check the insulation between the control circuit and the output circuit. Check the control panel module, each instrument, alarm device and start switch.

特别注意：可以说 不可能让水侵犯打着机的丙烷冷却系统！Note: Never let water enter the combustion chamber of the engine!

漏电净化处理方式 柴油车电站冷库机组进水的后的办理措施：Treatment  after water enter the generator:

当来判断重油带发高压电汽轮汽油发电站机起因素的丙烷燃烧仓都没有取水，绝缘层包含规定要求时，可开机重油带发高压电汽轮汽油发电站机。在开机时要需注意以内难题：When confirm there is no water in the combustion chamber  and the insulation meets the requirements,can start the generator. Pay attention to the following issues when starting:

1、在起动向前行因此检查报告，包扩排放口然油箱淹水。电力设备系统软件渐渐上电，分析可否有不正常。Do all inspections before starting, including draining water in the fuel tank. The electrical system is gradually powered on, and observe whether there is any abnormality.

2、间断启用起主观因素的时间段不容许已经超过三十秒钟。若起主观因素不许自燃，则定期检查燃料管道及电力二次回路，两三分钟的英文后重复启用。Start the engine continuously shall not exceed 30 seconds. If the engine cannot catch fire, check the fuel line and electrical circuit, and start again after one or two minutes.

3、体检启思想音效能不能有发现异常，能不能有臭味。体检机电仪表盘的表现、液晶屏表现屏能不能断屏也可以表现不清。

Check whether the engine sound is abnormal and whether there is a peculiar smell. Check whether the display of the electrical instrument and the LCD screen are broken or unclear.

4、增进查看液压油的压力和水温，这样油压机或温符合要求国家合科技原则，应开起启驱动力。停用后，查两次液压油表面。Closely observe the oil pressure and water temperature. If the oil pressure or temperature does not meet the technical specifications, the engine should be shut down. After stopping, check the oil level.

当评断启行为将渗水、并网发直流无刷调速电机隔绝不一致合耍求时，岂能强行维护，应互惠互利并网发直流无刷调速电冷库机组产品的专业性系统人的好处。When it is judged that water may enter the engine and the insulation of the generator does not meet the requirements, do not repair it without authorization, and seek the help of professional technicians from the generator manufacturer.

特大暴雨/湿潮自然环境，柴油发动机发电站制冷机组应用注意力关键环节Key points for unit operation in rainstorm / humid environment

1、摆放学习环境符合要求1. Placement environment requirements（1）野外放到操作的发动机组，需最好防潮罩对策，配资防潮罩棚、隔音箱等；

Rainproof measures shall be taken for units placed outdoors, and rainproof sheds, static speakers, etc. shall be equipped;

（2）空气能热泵硬壳须有能信的爱护与地面保护线，对都要有比较适中化点真接与地面保护线的来发调速电机,则肯定由专业技术员工参与比较适中化与地面保护线；The shell of the unit must be reliably grounded. For generators requiring direct neutral grounding, the neutral grounding must be carried out by professionals;

（3）闪电频发的地方利用仪器，请配资防雷控制系统。If machines are used in lightning prone areas, please configure lightning protection devices.

（4）请尽量不要将汽轮发电机放入于山势较低，路基不牢（泥巴地面的）会结水的敌方；Please do not place the unit in a place with low terrain, weak foundation (soil ground) and easy to accumulate water;

（5）安置在低下室选用的机子，需干好低下室排水口、隔潮工作上。For machines placed in the basement, drainage and moisture-proof work in the basement shall be done well.
